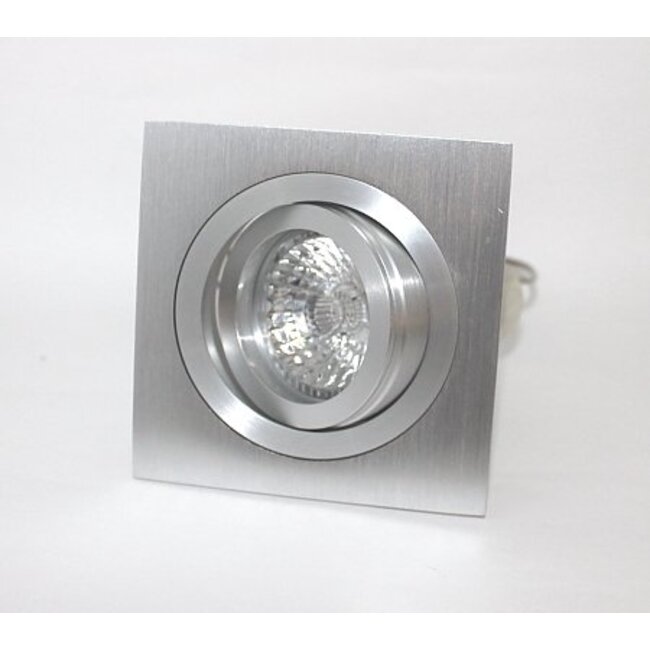

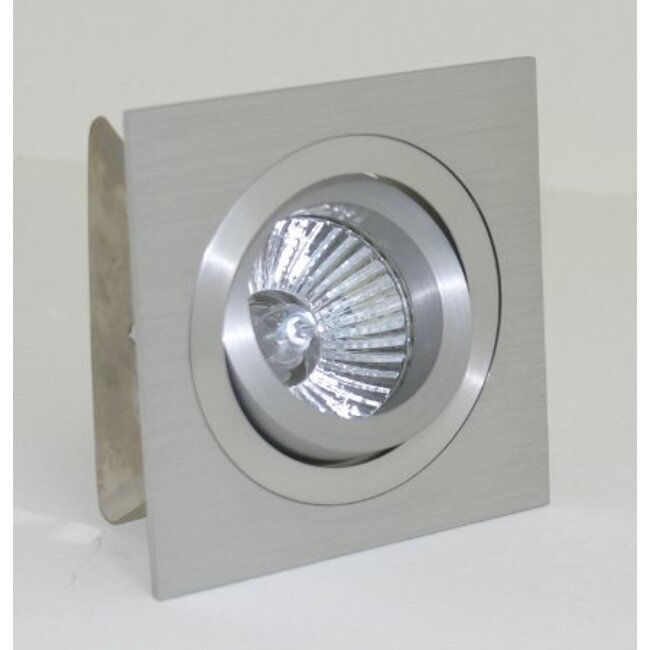

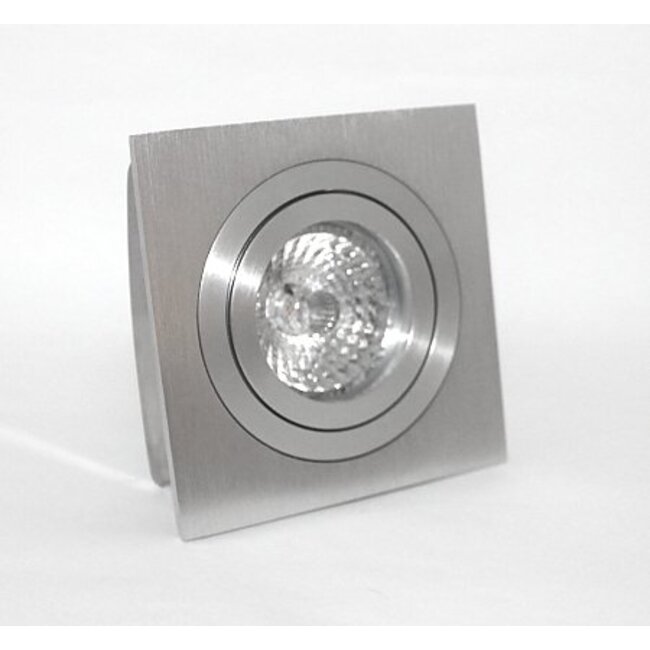

R&M Line Square aluminum design Recessed spot

Tiltable square recessed spot, Made of matt corrosion resistant aluminum and can therefore also be used in the bathroom. Due to the beautiful finish this spot has a very luxurious appearance. This recessed fixture is also available with blade springs for
Article number:
S10.1031.35
Availability:
In stock (67)
Delivery time:
product-banner
Buy 10 for €18,35 each and save 8%

€22,70 €19,95

Incl. tax

The spot is available with blade springs or springs. The version with blade springs can be mounted in a concrete ceiling. The version with springs is usually used for lowered or plaster ceiling. The LED light source is recessed more than 1cm so that the glare is minimal.
The entire inner part of this spot can be pulled down to replace the light source. The light source is secured with an aluminum clamp ring.



  • Available in color WHITE and ALUMINUM-MAT
  • Sealing class is IP20. Only used indoors.
  • Maximum power of 35 Watt.
  • Suitable for type light sources MR16 12v GU5.3 and 230v GU10 halogen lamp or LED lamp and LED modules.
  • Supplied with 12V socket or GU10 230v lamp holder
  • Spot is adjustable and tiltable to 30 °
  • Supplied without light source
  • Dimmable in combination with a dimmable light source

Dimensions:
diameter: 90X90mm
mounting hole: 78mm
installation height: from 65mm *

* There are different sizes of LED light sources. The installation height of the luminaire is determined by the light source used.

Light source type: Mr16 of Gu10
Light source included: No
number of light source: 1
Dimable: Depends on the light source
Wattage: 50Watt max
Voltage: 12 volt or 230 volt
Color Temperature: N.A.
Color:
Luminous flux ( lumens):
Color index ( CRi ):
Material: Aluminium
Height: N.A.
Width: 90mm
Length:
thickness projection:
Installation opening: 80mm
Tiltable: Yes
Tilt angle: 30D
IP Value: IP20
Energy label:
warranty: 2 years
Made in:
