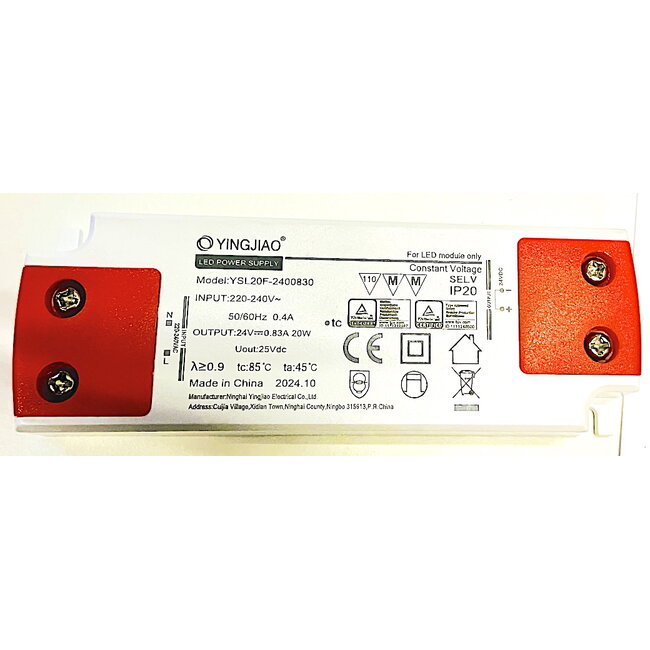

Compact LED driver for 24 Volt DC LED applications.

Ultra-slim LED power supply (only 16.5 mm high) for independent use with a constant 24 V DC output voltage.
Standby power consumption at no load < 0.5 W.
Equipped with protection against open circuit, short circuit, overload and overvoltage.
Automatic restart after fault recovery.
ECO design compliant with ERP directives.

• Independent control gear

• Protection class II, SELV output

• Constant voltage DC 24 Volt

• Protected against overload, short circuit and overvoltage

• EMC compliant: EN61347-1, EN61347-2-13, EN62493, EN55015

• Suitable for LED applications such as LED strips and LED modules

• Maximum load: 20 W

• Non-dimmable

• Sealing class: IP20

• Dimensions (L × W × H): 103 × 35.5 × 16.5 mm

Technical data:

• Output voltage: 24 V DC

• Output current: 0 – 0.83 A

• Maximum power: 20 W

• Rated input voltage: 220 – 240 V AC, 50/60 Hz

• Inrush current: approx. 30 A

• Efficiency: up to 88 %

• Ripple & noise: max. 240 mVp-p

• Operating temperature range: -20 … +45 °C

• Weight: approx. 85 g

• Housing: plastic

• Connection: screw terminals
