The TCI UNIVERSALE 20 LC is a non-dimmable constant current LED driver up to 20 W with adjustable output from 100–380 mA and optional 24 V output, designed for reliable indoor lighting applications. Read more.

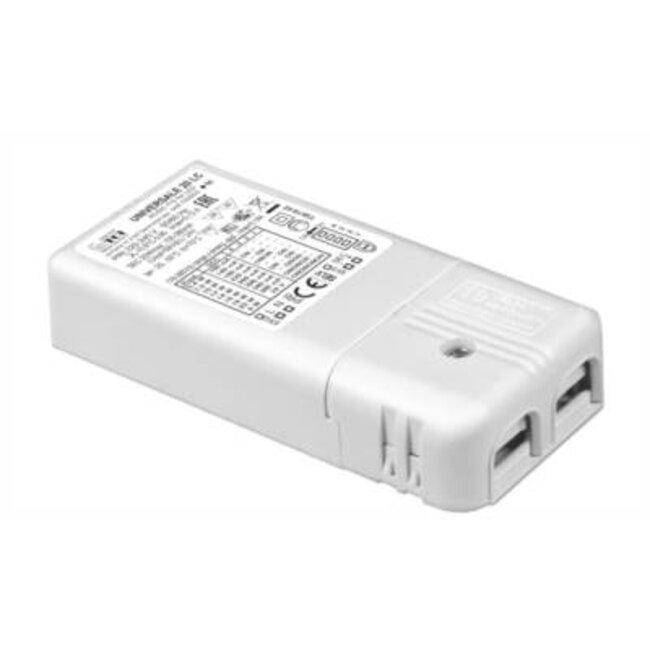

The TCI UNIVERSALE 20 LC is a compact LED driver for indoor lighting applications, designed for use with constant current LED modules or LED strips. This driver provides a stable output up to 20 W with adjustable current settings from 100 mA to 380 mA via a DIP switch and also supports 24 V constant voltage operation. Thanks to active PFC and a ripple-free output, it ensures smooth and reliable lighting performance. This driver is non-dimmable and intended for indoor use.
Type: Constant current LED driver
Input voltage: 220–240 V AC, 50–60 Hz
Power output: up to 20 W
Constant current output: 100–380 mA (adjustable)
Constant voltage output: 24 V DC (up to 9 W)
Output voltage (CC): approx. 2–54 V DC
Dimmable: No
Protections: short circuit, overtemperature, and overvoltage protection
Power factor correction: Active PFC > 0.9
Protection class: IP20 (indoor use)
Dimensions: approx. 111 × 52 × 22 mm
Manufacturing origin: Italy
Constant current LED modules
Commercial and residential luminaires
Indoor lighting projects where dimming is not required
