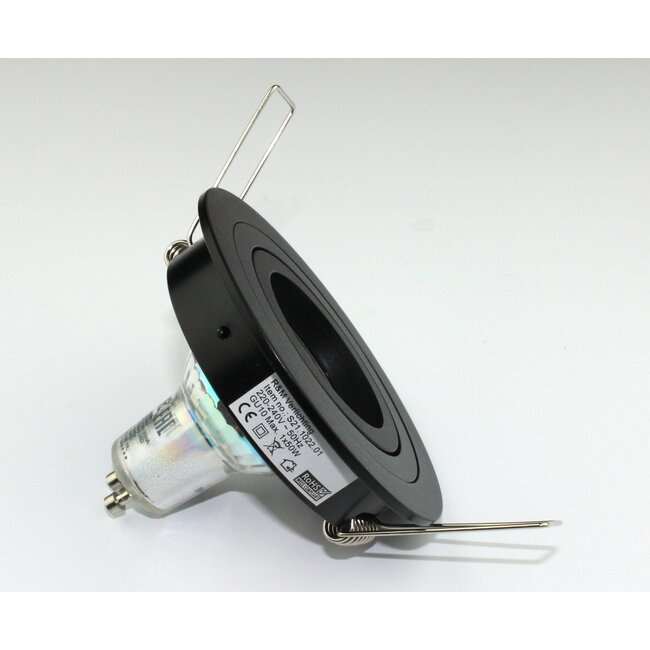

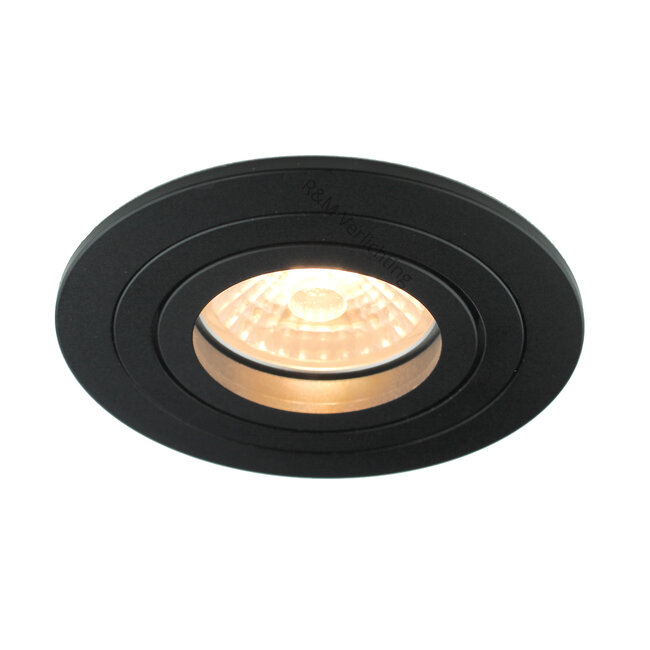

The spot is available with leaf springs or springs. The version with leaf springs can be mounted in a concrete ceiling. The version with springs is usually used for suspended or plastered ceilings. The entire inner part of this downlight can be pulled down to replace the halogen or LED bulb. The halogen or LED lamp is fixed with an aluminum clamp ring.
- Available in color Black
- Sealing class is IP20. Only used for indoors.
- Maximum power of 35 watts.
- Suitable for light sources MR16 12v GU5.3 and 230v GU10 halogen lamp or LED lamp and LED modules.
- Supplied with 12V socket or GU10 230v lamp holder
- Spot is 360 ° rotatable and tiltable up to 30 °
- Delivered without light source
- Dimmable in combination with a dimmable light source
diameter: 90 mm
mounting hole: 83mm
installation height: from 65 mm *
* There are different sizes of LED light sources. The installation height of the luminaire is determined by the light source used.
We recommend an installation height of 10-15 cm, this will improve the lifespan of the light sources.
|Light source type:|
|Light source included:|
|number of light source:|
|Dimable:||Depends on the light source|
|Voltage:||12 volt or 230 volt|
|Luminous flux ( lumens):|
|Color index ( CRi ):|
