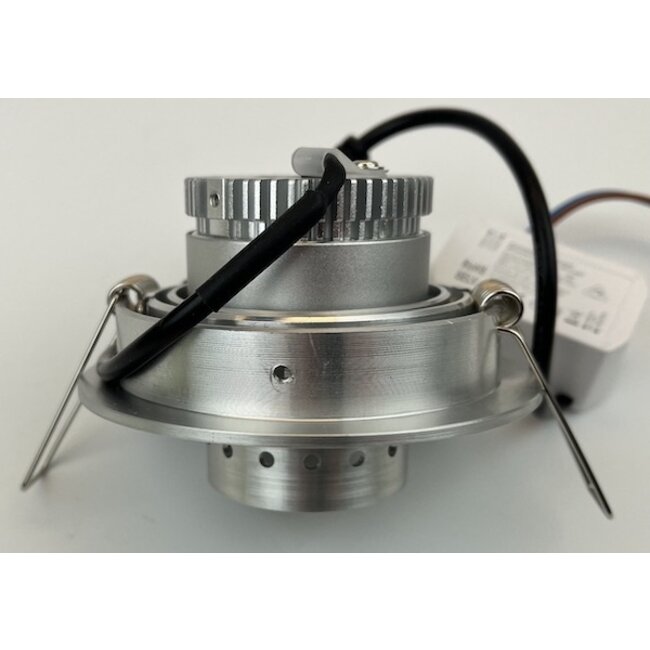

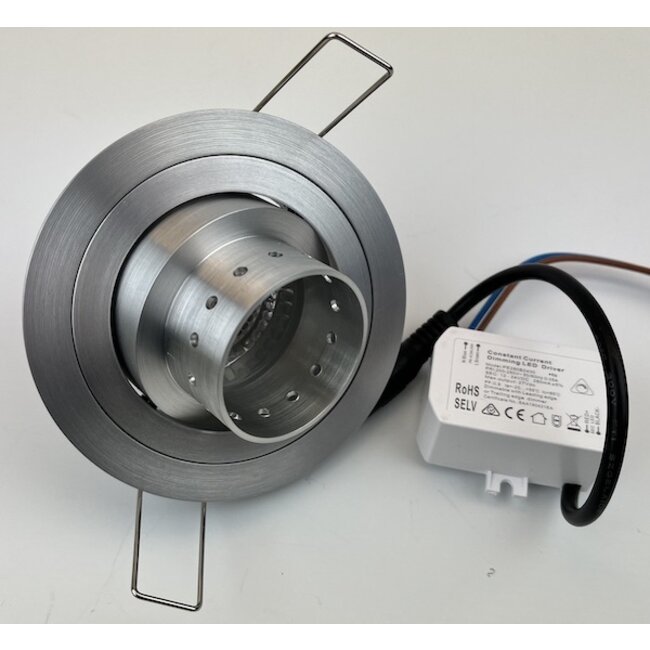

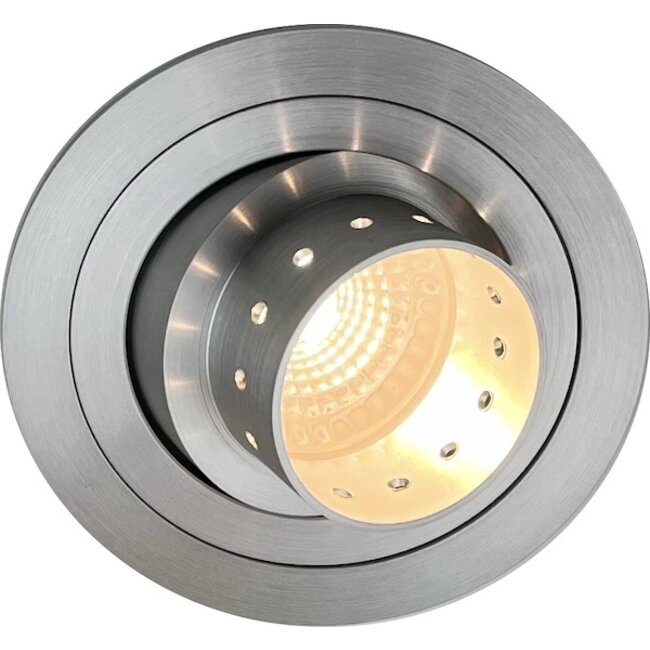

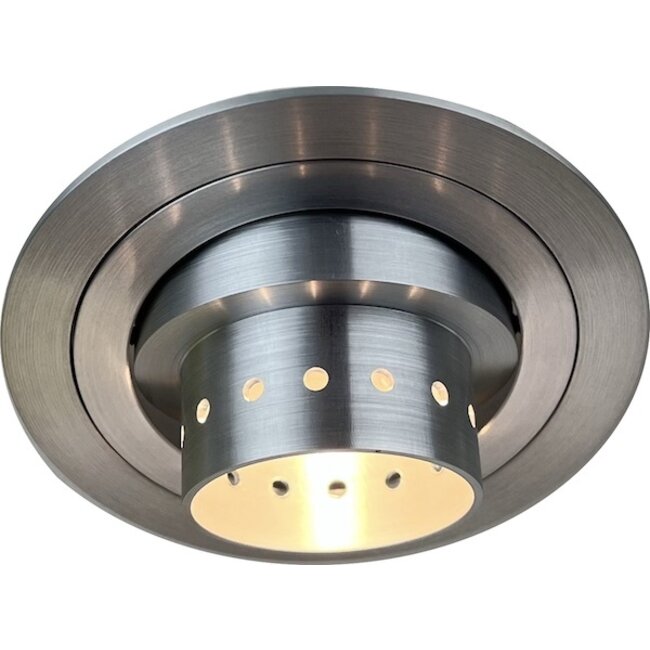

R&M Line Design recessed spotlight230V GU10 Tilt Blade Gun aluminium

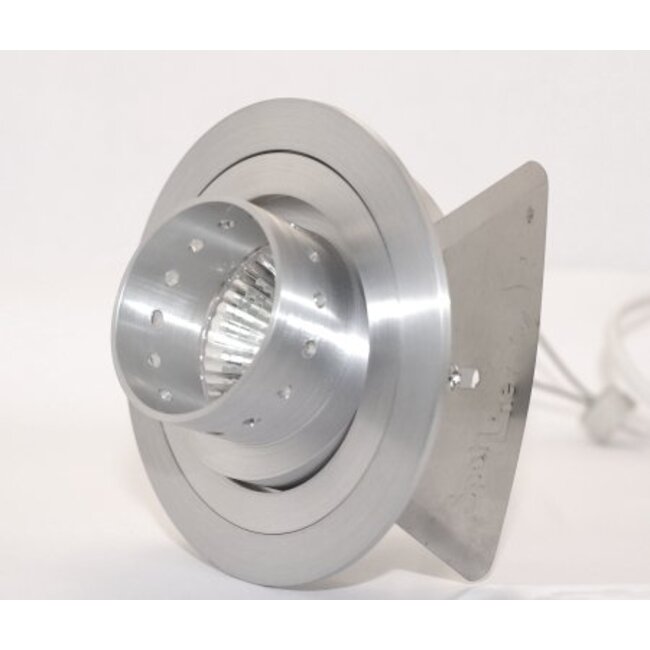

The spot is available with leaf springs or springs. The version with leaf springs can be mounted in a concrete ceiling. The version with springs is usually used for lowered or plaster ceiling. The entire inner part of this spot can be pulled down to easily replace the LED lamp. The light source is not fixed with a clamping ring but with flexible springs that are mounted on the lamp holder and the back of the inner ring of the downlight.
- Sealing class is IP20. Only used indoors.
- Maximum power of 12 Watt LED.
- Suitable for type light sources MR16 12v GU5.3 and 230v GU10 LED light and LED modules.
- Supplied with GU10 230v lamp holder
- Spot is adjustable and tiltable to 30 °
- Supplied without light source
- Dimmable in combination with a dimmable light source
Dimensions:
diameter: 90mm
mounting hole: 78mm
installation height: from 65mm *
* There are different sizes of LED light sources. The installation height of the luminaire is determined by the light source used.
