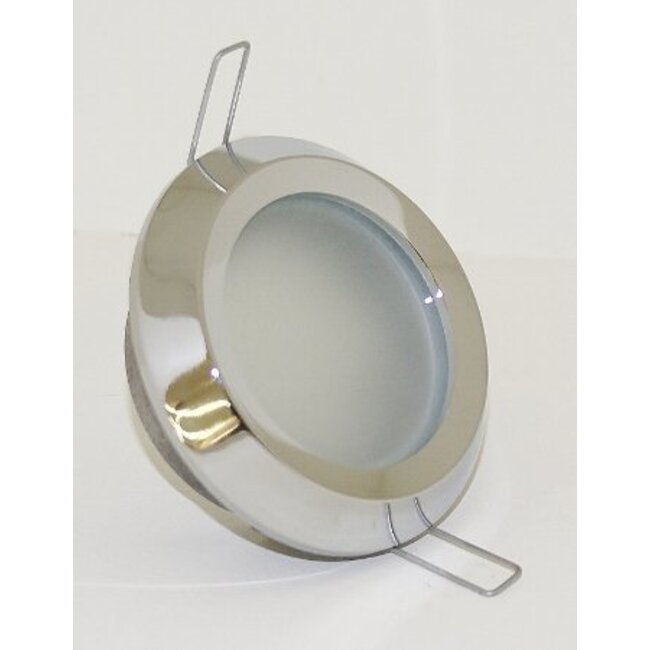

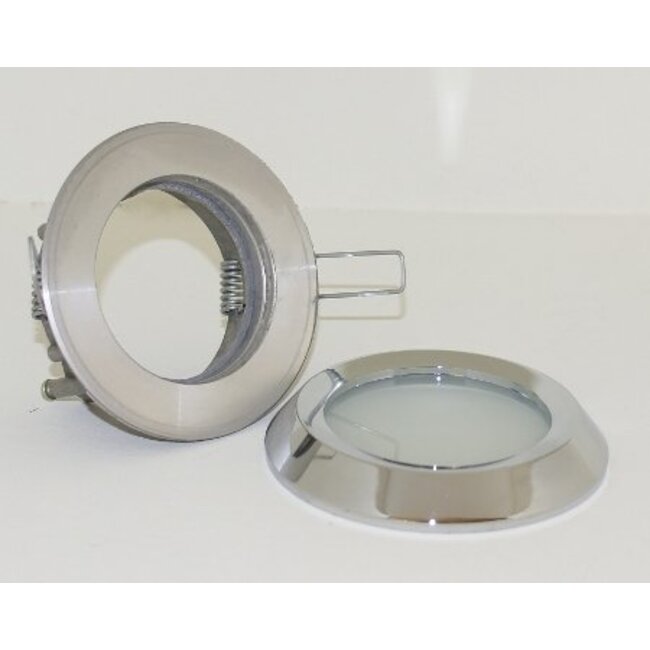

Recessed downlight for the bathroom may be placed in zone 1, 2 and 3 in the bathroom. Due to the high finish level of this downlight, the bathroom will immediately get a luxurious look. And if the spot combines with a LED light, you can enjoy your bathroom.

• Sealing class is IP65 Water-proof and dust-proof.
• For more information about the zone layout you can read here.
• Maximum power of 35 Watt.
• Suitable for type light sources MR16 12v GU5.3 and 230v GU10 LED lamp.
• Supplied with 12V socket or GU10 230v lamp holder
• Spot is NOT tiltable
• Supplied without light source
• Dimmable in combination with a dimmable light source

ASSEMBLY MANUAL

DIMENSIONS:
Diameter: 85mm
Mounting hole: 65mm
Installation height: from 65mm *

* There are different sizes of LED light sources. The installation height of the luminaire is determined by the light source used.
