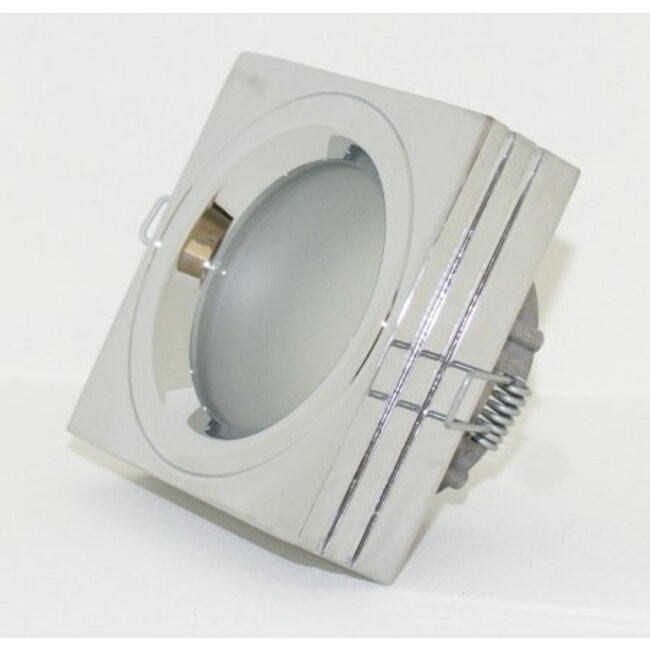

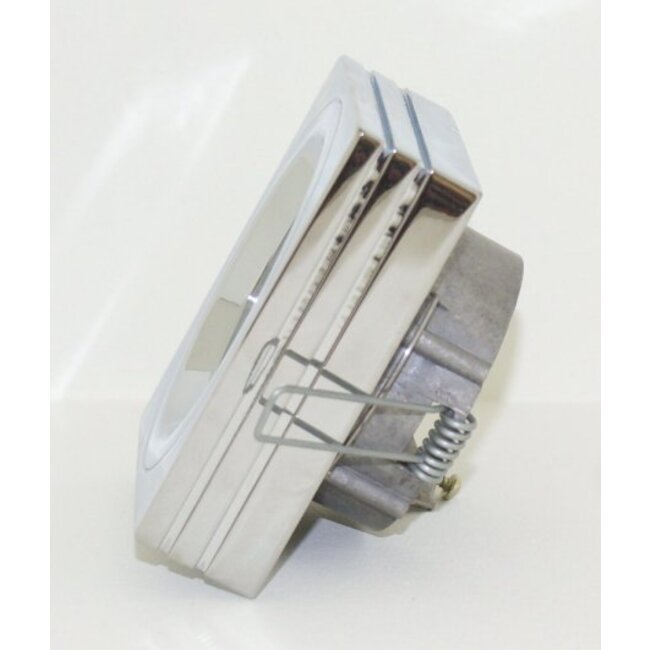

Square recessed luminaire made of high quality chromed aluminum. Due to the high finishing level, this bathroom recessed spot gives a very luxurious appearance to every ceiling. Because the lid of this spot can be loosened, you can easily place the lamp. Available in low-voltage 12v and high-voltage 230v version. You can adjust this in the selection menu. This square recessed spot can also be used as lighting in living rooms, hall, toilet and bedrooms.

• Sealing class is IP65 Water-proof and dust-proof.
• For more information about the zone layout you can read here.
• Maximum power of 35 Watt.
• Suitable for type light sources MR16 12v GU5.3 and 230v GU10 LED lamp.
• Supplied with 12V gu5,3 socket or GU10 230v lamp holder
• Spot is NOT tiltable
• Supplied without light source
• Dimmable in combination with a dimmable light source

ASSEMBLY MANUAL

DIMENSIONS:
Diameter: 86X86mm
Mounting hole: 65mm
Installation height: from 65mm *

* There are different sizes of LED light sources. The installation height of the luminaire is determined by the light source used.
