SELF Electronics LED Power Supply dimmable CV SLD30-12VL-E 12V-30W
Dimmable Led power supply for independent use with constant voltage output of 12Vdc. Power range from 5 to 30W. The current output can be regulated between 5-100% by trailing edge or leading edge dimmers. Very low ripple current throughout the regulation range. Protection against open circuit, short circuit, over load and over temperature. Automatic reset in case of failure
Technical specifications

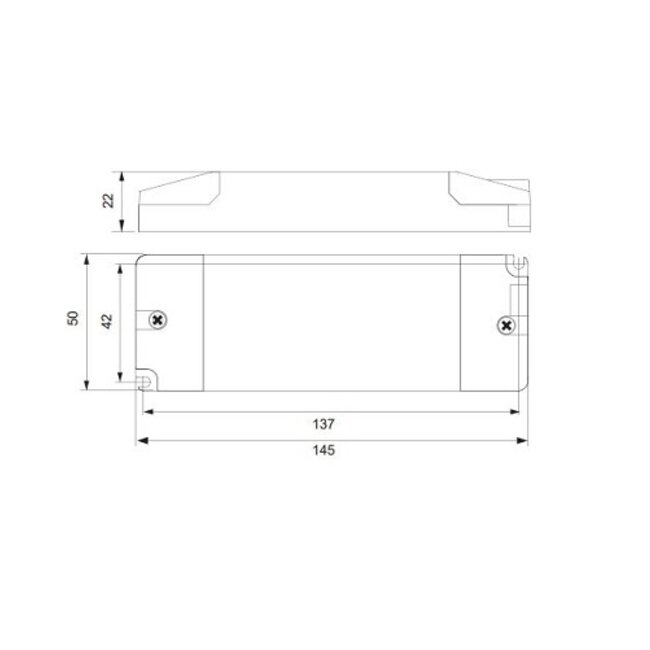

- Length (mm): 145 Width (mm): 50 High (mm): 22
- Voltage In (Vac): 220~240
- Voltage Out (Vdc): 12
- Intensidad Out (A): 0.42~2.5
- Frecuency (Hz): 50~60
- Power (W): 5~30
- Room Temperature (°C): -10~+45
- Critical Temperature (°C): 90
- Ingress Protection: IP20
- Dimmable: Phase leading-edge or trailing-edge
- Power factor: 0,95
- data sheet
