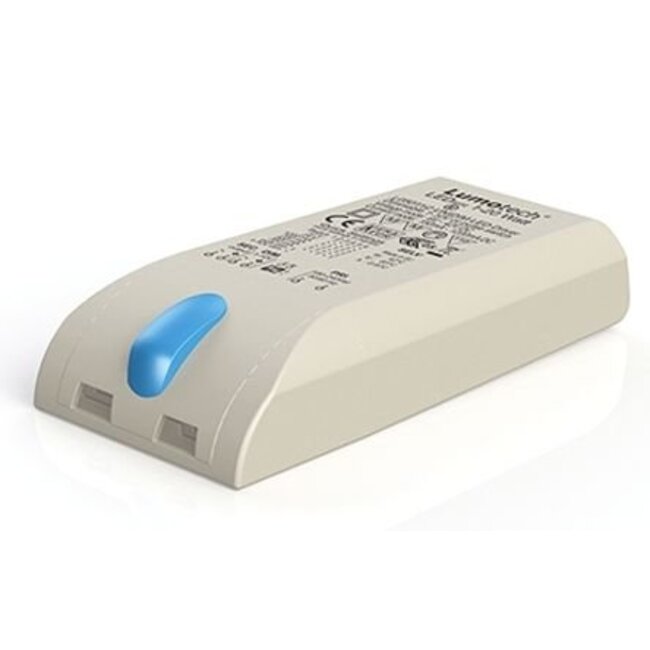

Lumotech/fulham LED Driver Lumo series L05011i2
The Dim input can be controlled by a standard controller of 1-10V (range 0-100%), a potentiometer of 100K log. (range 0-100%) or a pulse switch (range 3-100%). The LEDs can be switched on and off with a short pulse. The power supply is protected four times: Thermal, against short-circuiting on the secondary side, against overloading and unloaded use.
- Can be loaded from 1 watt to a maximum of 20 watts
- adjustable from 350 mA to 1050 mA
- Select an output voltage (see technical data for detailed information)
- LED transformer with built-in dimmer
- Suitable for switches with pressure pulse function
- Dimensions: LxWxD: 110 x 52 x 23.5 mm
