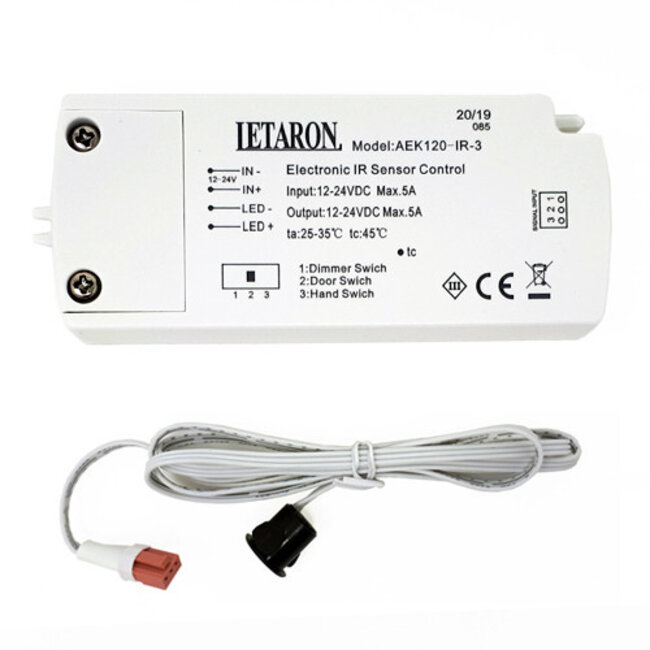

R&M Line Electronic Relay AEK120-IR-3 sensor IR and dimmer CCT 12/24Vdc
Electronic switch with IR sensor for 12v or 24 volt LED lighting, adjustable with three functions
Option 1: Switch and dimmer. Turn the hand ON/OFF and maintain >0.5sec dimmer. Option 2: doors. close the door
OFF, open ON. Option 3: Hand Switch: Hand Approach ON and OFF.
Is placed between the LED driver and the LED lamps By moving your hand or an object in front of the sensor, the electronic switch will switch on or off. Provided with 2 meters of wire between the sensor and the electronic switch. Sensor for flush mounting.
Borehole for the sensor is 13mm.
- Constant voltage;12 or 24 volts
- Three modes to choose from:
1. Door Detection Mode: Block to OFF, Unblock to ON;
2. Hand detect mode: block once to ON, block again to OFF;
3. Dimmer mode: Block < 0.5s to ON/OFF, block more than 0.5s to dim between 5%-100%; - Apply to LED indoor lighting
- data sheet
